SKU: LCDL-CDR4-12W-MV-3CCT-WH
Choose our round commercial LED downlight, available in 4 sizes and 4 different wattages, offering a high-performance and flexible lighting solution for your commercial spaces. Featuring an elegant white finish, this fixture provides a 100-degree beam angle for uniform illumination. With selectable 3CCT technology (3000K, 3500K, 4000K), you can easily adjust the color temperature during installation, while benefiting from a high color rendering index (CRI 90) for accurate color representation.
Designed to operate on a wide voltage range of 120–347V, this downlight is perfectly suited for commercial and industrial environments. Depending on the selected option, it delivers a luminous output ranging from 980 to 3700 lumens, while ensuring efficient energy management with 0–10V dimming compatibility to adjust brightness as needed. This model is also certified for use in damp locations, making it ideal for indoor areas exposed to moisture such as corridors, vestibules, or commercial bathroom ceilings.

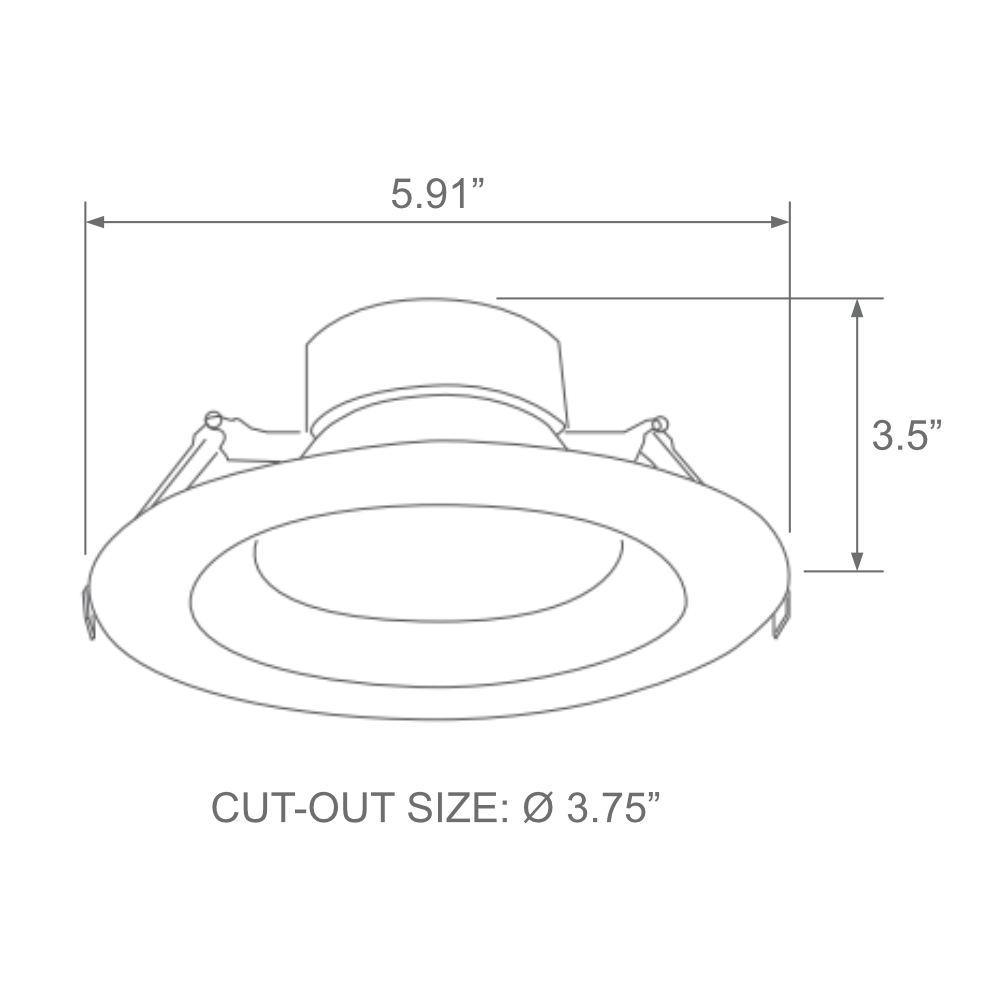

| Wattage | Dimension | Cutout size |
| 12W | ⌀4" | ⌀3.75" (⌀95 mm) |
| 10W-12W-17W | ⌀6" | ⌀6" (⌀152mm) |
| 14W-17W-20W | ⌀8" | ⌀7.5" (⌀191mm) |
| 30W-35W-40W | ⌀10" | ⌀8.5" (⌀216mm) |
Come and discuss your project with an LED lighting specialist.
